The information provided in this user manual will help you toget the most from your new lights.
Download the MyLights user manual.
Welcome to your new MyLights smart lighting system.
Upon first power up, the system will take a few minutes to initialise. If you walk away from your screen it will go to sleep, to wake the screen simply double tap on a corner of the screen.
This is your home screen, press the large MyPlace button to start the MyPlace app. Once the MyPlace app has loaded press the yellow MyLights Tab to start controlling your lights.
CONTROLS
The following explains the types of buttons or switches that are found in the MyLights system.
Light Button (dimmable)
Hue Lights (dimmable)
- Flick the light wall switch 4 times for 100% brightness
- Add your Hue Lights by connecting your License Hue bridge in Setup > Options page
ON/OFF (non dimmable)
Group button
HOME PAGE
A - Favourite Groups and Lights
The middle section of the Home screen displays the most used buttons (device specific). Any groups that have been starred in the Group screen will also be shown in this section. Starred groups will be shown first, followed by the most used light buttons.
B - Favourite Scenes
These are your four favourite scenes that have been starred from the Scenes screen. The four scenes can be changed at any time by selecting and deselecting the stars on the Scenes screen. Pressing a favourite scene button will run that scene.
NOTE: If you also have MyPlace or MyAir, this homepage will not exist. Instead, you should refer to MyPlace homepage that will include MyPlace, MyAir & MyLights items. This will be your quick access for all of your items in your smart home system.
GROUP PAGE
The Groups page enables you to group lights into useful groups, such as creating a group for all of the lights in your bedrooms. This allows you to control all of the grouped lights from a single button.
A - Press to expand or collapse group
B - Press the dimmable light button to change brightness level
C - Press the group button to change the status of all items in the group
D - Press the star button to pin a group to the favourites section of MyPlace Home
E - Press to turn the light ON or OFF
F - Requires license hue bridge and lights
Groups can be created, renamed or deleted through the Manage Groups button found on the Setup screen. Up to 10 groups can be created.
Pressing and holding on a switch icon in the Group screen will allow you to drag the switch into a new position or group.
SCENES PAGE
Scenes allow you to set the aircon, lights and other items, the way you want them from a single button. Scenes can be triggered by manually pressing the Scene button or enabling the scene to run in certain day and time.
NOTE: Scenes can be found under MyPlace tab if you have multiple tabs.
A - Master Scenes
There are 4 master scenes that perform preconfigured functions as follows;
- MyWelcome - Turns ON all lights in the system
- MyGoodbye - Turns OFF all the lights
- MyEco - Saves energy by dimming all the dimmable lights to 80%
- MySunset - Turns on all the lights at sunset.
NOTE: All Master scenes except MyEco can be edited from your wall mounted touch screen by pressing the Edit (pencil) button.
B - Custom Scenes
You can add up to 12 custom scenes.
C - Press the star button to pin a group to the favourites scenes section of MyPlace Home
D - This shows that the events is included in the scene
E - This shows the day and time when the scene will run automatically.
F - Creating a Custom Scene
To create a new Custom Scene press the + button. This will bring up the Scene Editor screen.
If you also have multiple tabs, you can select which of them you want to add and configure in the scene.
SCENES EDITOR PAGE
The Scene Editor screen as shown below is were you can configure any new or existing scenes.
Set the Scene Window
This window allows you to control what the scene will do to your aircon, lights and other items when it runs.
A - If you have MyAir or MyLights, you can add or remove them to this scene.
B - Unticked Groups and Buttons will be ignored when the scene runs.
C - Press to change the light state.
D - Press to change the brightness level.
E - Ticked Groups and Buttons are included in the scene.
F - Highlighted Buttons indicate what will happen when the scene runs.
G - Set the Time Window
This window allows you to set a time and choose which days for your scene to run. The schedule can be enabled and disabled.
H - MyTime
MyTime allows you to slowly turn on the dimmable lights at a set time. Press the checkbox to enable or disable MyTime.
I - Saving, Running and Deleting a Scene
All changes to a Scene must be saved by pressing the save button. You can run a scene from the editor screen pressing the “Run Now” button. If the scene is not longer needed then it can be deleted by pressing the trash button.
EVENTS PAGE
Events give you the ability to set and run ‘tasks’ when specific events happen around your home during a designated period of time.
A - This shows what task is enabled on this event.
B - Press to edit an event.
C - This shows when an event is disabled.
D - Press the button to create an event.
E - This shows the time when an event is active.
F - Press the event name to display the summary of the event
EVENT EDITOR PAGE
Events will monitor the selected event(s) during the selected time period and day(s). When the conditions are met, the selected task will run.
NOTE: Make sure your wall mounted touchscreen is connected to your Wi-Fi. To start creating an event, set your post code first in options page.
A - Conditions
These are the conditions that need to be met first before a task will trigger.
-
- Multiple Occurrence – this can triggers the task multiple times.
- Single Occurrence – this can triggers the task once per day. You can select multiple “single occurrence” conditions and all of them must be met for task to trigger.
B - Tasks
These are the actions that will take place when an condition(s) was satisfied. Please follow this link for more information.
C - Active Times
These is where you set the schedule when the event will be active.
D - Trash Button
Press to delete the event.
E - Save Button
Press to save and exit the event.
Conditions > Multiple Occurence
Motion Sensors
This condition will be satisfied when there is motion or no motion detected. This is only applicable if you have motion sensor added in your Licensed Hue Bridge.
Garage Door
This condition will be satisfied when any garage door is opened or closed. This only applicable if you have MyGarage module of MyPlace.
Conditions > Single Occurence
A - Suburb temperature
This condition will be satisfied when the current temperature of your location is above or below the set temperature.
B - Clear and Sunny weather
This condition will be satisfied when the forecast in your location is “Sunny” or “Clear”.
C - Zone temperature
This condition will be satisfied when the zone temperature is above or below the set temperature
D - Hue sensor temperature
This condition will be satisfied when the hue sensor temperature is above or below the set temperature. This requires a Licensed Hue Bridge.

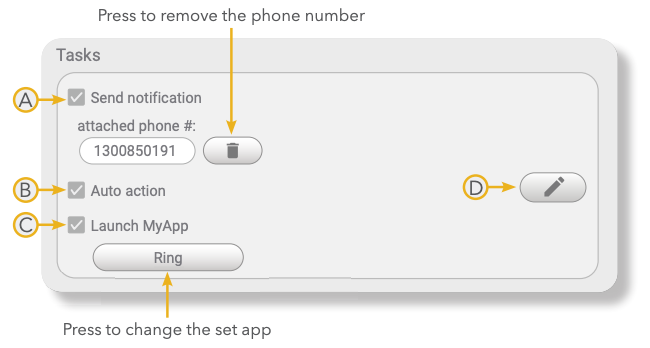

Tasks
These are the tasks that will run after the condition(s) is satisfied.
A - Send Notification
This task will send a notification to all paired phones. When you set a phone number in this task, a call button will appear after opening the notification. This will give you an option to have a quick call to the phone number set.
NOTE: The notification will not go to the number set. The number set will show in the notification on your paired phones.
B - Auto action
This task will initiate your things to run according to the set configurations.
C - Launch MyApp
This task will open an app. If you open a notification in your phone, the app will load if it exist. D - Edit Auto action Press to edit the auto action.
NOTE: Don’t forget to press the set button to save the configuration made in the auto action.
SETUP PAGE
The Setup Screen allows you to configure your MyPlace system. From this screen you can perform the following actions:
A - Rename motion sensors, garage, blinds and other items
B - Configure MyPlace settings
C - Enable / Disable Remote Access
D - Manage Groups (create, rename & delete)
E - Advanced Information about your system
F - Status messages and codes will appear here
